Australian Standard For Battery Testing Gets Closer

Australian Standard for solar battery testing

Out of my twenty-four 2V, 1200AH batteries, one has developed a fault and is dragging on the whole system. It would be a simple warranty claim except that I have to get the battery tested, and where I live nobody has the equipment needed.

As a result of my battery discussions with my installer, I was very interested to learn that a solar battery performance standard is under development; so last Thursday (June 20), I joined a webinar hosted by the Smart Energy Council briefing the industry on its progress.

As is so often the case with standards, it will still be some time before the final document is ratified – but the industry is very close to having a usable document while Standards Australia goes through its formal processes.

Explaining the draft standard, which was completed at the end of May 2019, CSIRO Energy’s Dr Anand Bhatt and DNV GL Australia’s Felix Liebrich told the briefing that Australia’s progress toward battery performance reporting standards makes us an international front runner.

The standard will apply to batteries connected to domestic and small commercial solar power systems, covering total system sizes up to 100 kW / 200 kWh.

Making It Easy To Compare Battery Data Sheets

The aim of the standard isn’t to prescribe the behaviour of the batteries themselves – there are already too many different chemistries and designs in the market for that – but to put the testing and documentation of solar batteries on an equal footing. That way, we in the industry – most particularly, retailers and installers – will be able to read spec sheets on a like-for-like basis, making it easy to compare solar batteries and give end users the best possible advice.

That can be difficult as things now stand. Manufacturers self-report battery performance, not always using the same parameters, making such comparisons difficult and complex.

As shown on DNV GL’s project page, that involves a lot of different systems: data might be reported at the cell level, the whole battery level, the DC system level, and the AC system level – with a variety of sub-modules involved in each of these.

As well as making sure solar battery manufacturers report a consistent set of parameters, Liebrich told the briefing the standard will also mean those running battery tests – which may be wholesalers and independent test labs as well as manufacturers – can know what tests they need to carry out.

As Dr Bhatt told the meeting, lead-acid battery lifetimes might be between 180 discharge cycles and 8,000 cycles, depending on measurement setup; while lithium-ion lifetimes can be reported as between 2,000 and 8,000 cycles.

Battery energy storage system - BESS

Manufacturers Gaming Battery Performance Figures

Dr Bhatt said there has been evidence of manufacturers “gaming” how battery performance is reported. For example, lifetime is discharge dependent – a solar battery that never suffers more than 5% discharge will deliver a much better lifetime than if the tester punishes the battery with a full discharge on each cycle.

Capacity tests are another target for the standard, Dr Bhatt said: “When we ask for a capacity rating, we want to know the time taken and the currents used”, he said – again to stop makers from gaming the system. “The tests are designed to provide usable numbers, estimates of efficiency losses … we’re trying to remove that sort of gaming.”

The standard will also cover how manufacturers specify the temperature range a solar battery is intended to operate in – but the far extremes of temperatures that could be seen in a climate-changed Australia won’t be covered. For example, operation when the mercury hits 52°C is already far outside any battery manufacturer’s warranty range.

That said, the standard covers four regional temperature averages for four seasons, to be as predictive as possible across the whole country.

How to evaluate solar battery performance

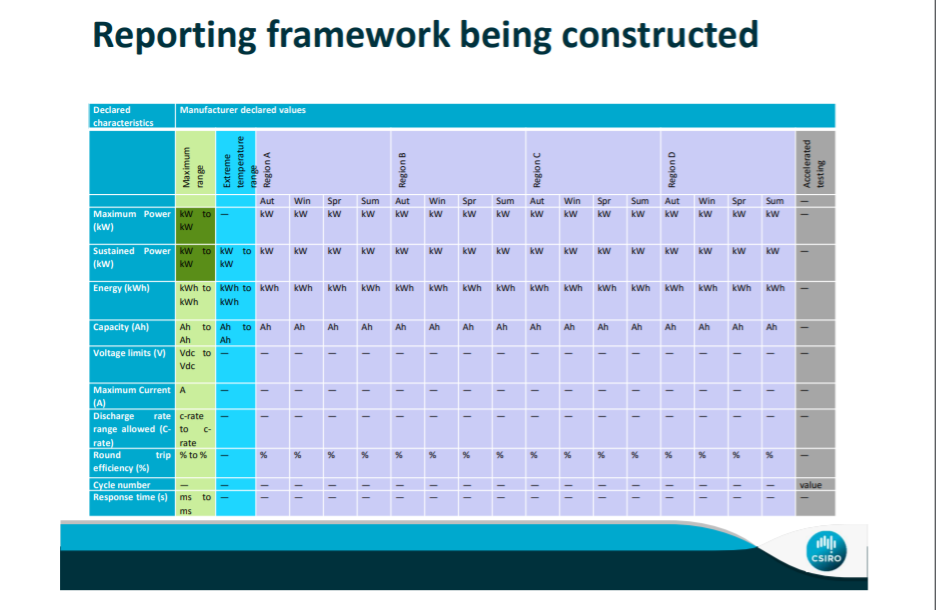

Reporting framework being constructed

The standards experts combed through hundreds of documents as the basis of their work, and identified many gaps in current international frameworks, so there are many more variables in the proposed standard’s electrical profile. It includes maximum power and sustained power (kW), stored energy (kWh), capacity (AH), voltage and current limits, C-rate (the maximum allowable discharge rate), efficiency, cycle number, and response time.

The two user profiles currently under consideration in the standard are today’s default solar-with-battery profile (battery stores energy from PV, discharges during morning and evening periods); and the “virtual power plant” (VPP) profile, in which the battery is managed by the VPP when it’s not being used by the owner.

Where to now?

When the project concludes in May 2020, the formalisation of the standard – that is, its ratification by Standards Australia – will commence. In the meantime, the project participants hope the draft standard will be adopted as widely as possible.

The CSIRO is due to publish battery testing pathways as soon as possible.

If you’d like to take in the webinar in full, the Smart Energy Council has it here, along with the full set of slides.

The standardisation project is funded by ARENA and the Victorian state government, and as well as CSIRO and DNV GL, participants include the Smart Energy Council and Deakin University.

And my problem? The standard will arrive too late to help, and while “warranty reporting” isn’t directly mentioned in the reporting framework, I’d hope that the industry can pluck out suitable parameters resellers can test in-place, so I don’t have to manhandle the battery out of the system and into my car to take to a test centre!

About Richard Chirgwin

Richard Chirgwin is a journalist with more than 30 years' experience covering a wide range of technology topics, including electronics, telecommunications, computing and science.

Comments

  1. Ian Thompson says

    Some years ago, I went to a seminar at which a representative of a well known battery, battery charger, and battery testing equipment vendor presented a “learned” paper about estimating battery life. A little historical now (mostly NiCad) but holds some relevance. The paper presented a quite complicated-looking depth-of-discharge (DOD) method for estimating battery life, in different applications – with an example.
    I took a copy of the paper home, but when looking more carefully at the formulae suddenly realised it could be condensed down to a much more simple form. You’ve probably guessed already – the condensed version was equivalent, but was simply determined by the “total Ahr throughput” of the battery – in other words, the number of total cycles the battery was exposed too. So, if the particular battery had a 200 day life at 100% DOD per day, it would have twice the life with 50% DOD per day, or twice the life if it had 100% DOD only every second day, etc. Age deterioration didn’t come into it.
    I guess they wanted to make themselves look smart and knowledgeable by making things complicated – but to me they looked a little stupid.
    Even then, a “voltage depression” effect (often called “memory”) was known about for NiCad’s, and I do know lead-acid battery life can be badly damaged if they are left fully discharged for extended periods.
    LiPo’s don’t deal well with either overcharging, or discharging.
    High temperature appear to “kill” VRLA’s prematurely.
    But none of these impacts on battery life were even considered.

    So, it’s good that a Standard is being developed – thanks for the “heads-up”.

  2. The way to avoid the the problems relating to a single 2-volt battery (presumably connected in series) is to compose your battery-bank of suitable (SLA/AGM) batteries. At most a single, basic and cheap battery needs to be replaced ~ or not, depending on which voltage you run.
    eg…. Further economies can be achieved by building (say) a 24-volt system and then running 12-volt circuits off that.
    Another alternative: the failing/inefficient 12-volt battery can be segregated from the bank, separately charged and used for a separate non-critical purpose (charging ‘devices’ or lighting the way to the dunny out the back.

  3. Lawrence Howard says

    Hi
    I own a 5kW x 48volts inverter system residential off grid system in west Africa(10h sunlight), connected to 12 panels x 270W x 24Volt and 8 x lead acid batteries each 200Ah x 12Volts.My main appliances are a 1 HP submersible water pump used bi-weekly only when there’s good sunshine + a 100W refrigerator used in daytime only. The rest is few LED lights bulbs used.I have experienced short battery life span twice and was wondering what the cause might be and recommended solution for longer lasting battery life. How could this setup be upgraded for optimum,long lasting 16kWh capability or better?sales man suggests replace lead-acid batteries with Lithium – ion?.your take please?
    Lawrence

  4. Lawrence Coomber says

    Lawrence based on your scenario, you can get much better performance functionality and importantly extend your lead acid battery bank life considerably by a system redesign.

    The key point might be to move away from your old style ELV (< 50 VDC) system design and move into an efficient PV + Battery Bank DC coupled LV (Low Voltage 480 VDC) system design.

    Your load demands are predictable and moderate and this is known as both load duty cycle and load diversity and your system design can quite easily be structured to manage your loads with minimal logic based system controls.

    Learn more about the aging effects of high current battery charging and discharging, verses higher voltage and low current system designs.

    I am happy to get some info to you to help you along if you need it.

    Lawrence Coomber

  5. Lawrence Coomber says

    Lawrence:

    One other useful follow up point for you as an end user of power related technology.

    If you want technical advice on power technology I recommend you discuss your thoughts/ideas with a qualified and licenced experienced power engineer.

    If you simply want to spend your money on something, then head directly to a salesman for advice.

    The industry has been operating long enough now to demonstrate that the power engineer and the power salesman are very rarely the same person.

    As Ron and Finn advocate often – do your homework first, then spend your money. Not the other way around.

    Lawrence Coomber
