Understanding Solar Panel Specifications Part #2: Power, Tolerance & Efficiency

In Part #1 I went into great detail about why the “Max Power” quoted on your solar panel specification sheet and the real max power you will actually get from that panel are very different numbers. I showed you how to calculate a more accurate max power by using some little known temperature specs.

In this post I’ll go through the other important numbers that you should look at when comparing solar panels.

The solar panel specification sheet, looks a bit scary at first glance, with lots of curves and about 2 dozen numbers with techno-babble labels. The good news is that only 4 of these numbers actually need to be understood by you – the consumer. The other numbers are for the (CEC accredited) solar designer to use to make sure that he uses the correct panels in the correct wiring configuration with the correct inverter.

The 4 numbers you have to worry about are these:

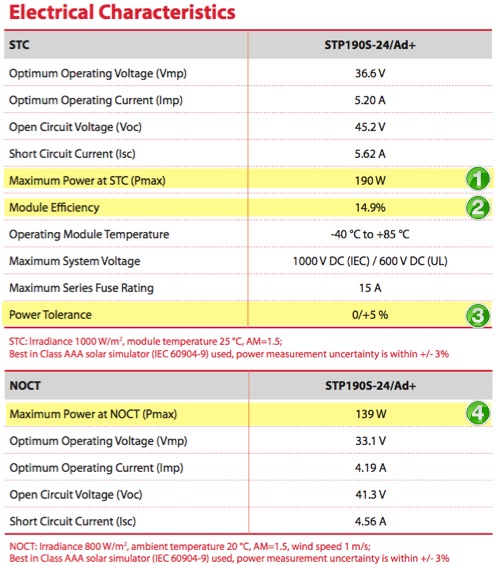

the 4 most important solar panel specifications

1) Maximum Power at STC (Pmax)

This is the number that everyone refers to as the “size” of the solar panel. e.g. a 190W solar panel has an “STC maximum power” of 190W. I went on at  great lengths in my previous blog post as to why this number is very optimistic to put it mildly!

2) Module Efficiency

Some solar panel data sheets also list “cell efficiency”. Don’t get module and cell efficiency mixed up! Cell efficiency if the efficiency of the solar cell (the beermat sized black/blue piece of silicon – many of which make up a single panel) in isolation.  Solar Panel efficiency is the efficiency of the panel as a whole and will always be slightly lower than the cell efficiency because of the gaps between individual cells. Most panels should have an efficiency of 13% or more.

Unless you absolutely need to squeeze as many panels as possible onto your roof, then don’t worry too much about this number. I’ve written a whole blog post about why solar panel efficiency isn’t the most important factor and you can read it here.

3) Power Tolerance – This is the range within which a panel manufacturer is saying the module can deviate from its specified STC max power. For example: if you had a -10%/+10% power tolerance on a 200W panel, the actual panels on your roof could have actual max Powers of between 180W and 220W.

These days it is increasingly common to have a 0% negative power tolerance. Which means that the panel will always have a rated STC max power greater than or equal to the specification. I would argue that a 0% negative power tolerance is also a good sign that the panel manufacturer has got a good handle on its quality control and manufacturing processes. So my advice is – be choosy and look for panels with a 0% negative power tolerance.

4) Maximum Power at NOCT

Not all data sheets have this number – but most reputable brands will list it. If it is not listed, that may be a sign of a not-so-great panel manufacturer.

This number is the maximum power of the panel when tested in harsher conditions than the STC max power. It is the power with less sun, and at higher panel temperatures.  It will typically be between 70-75% of the STC power. It is useful because it takes into account how much power is lost due to increasing temperatures.

If you want to quickly get an idea of which panels will give you more power in reality – even though they have the same STC max power – then choosing the panel with the highest NOCT max power should give a fair indication of the best one for the hot Aussie conditions.  It does, of course, depend on the manufacturers’ specs being truthful!

So there you have the 4 numbers that you need to know if you want to compare solar panels before buying. If you think there is a critical spec that I’ve missed out then let rip in the comments.

About Finn Peacock

I'm a Chartered Electrical Engineer, Solar and Energy Efficiency nut, dad, and the founder and CEO of SolarQuotes.com.au. I started SolarQuotes in 2009 and the SolarQuotes blog in 2013 with the belief that it’s more important to be truthful and objective than popular. My last "real job" was working for the CSIRO in their renewable energy division. Since 2009, I’ve helped over 700,000 Aussies get quotes for solar from installers I trust. Read my full bio.

Comments

  1. Steeler.Fan says

    I am designing a PV system for my home in HI. The average daytime temp is 82F. A solar radiation map of my part of the island shows that I have 7 solar hours per day on the average. (Yes, its a very sunny area!) With a roof installation, the panels will get very hot during the day.

    The following link calculates module temp from ambient temp and NOCT:
    http://pvcdrom.pveducation.org/MODULE
    At an ambient temp of 29.4C (85F) and an NOCT of 45C (representative of better PV panels), I calculate a pv module temp of 54.5C, much hotter than the 20C ambient temp at which NOCT is measured.

    (Pmax) [W] at NOCT doesn’t seem to correlate as expected with the temperature coefficient of Pmax. For instance, the maximum power (Pmax) [W] at NOCT is 200 W for Samsung’s LPC250SM and 188.9 W for Sanyo’s HIT-H250E01. That is 5-6% less power at NOCT for the Sanyo compared to Samsung 250w panels. At the much hotter ambient temperatures on my roof, the difference would even be greater. However, from the temperature coefficient of Pmax [%/°C) for Samsung LPC250SM at -0.48 and for Sanyo HIT-H250E01 at -0.3, I would have expected the Sanyo 250 to outperform the Samsung in the heat. Why is the Sanyo HIT-H250E01 maximum power (Pmax) [W] at NOCT less than the Samsung LPC250SM?

  2. Hello Finn,
    The specs showing for Lg panels I am looking at list the following ( which I as a layman do not understand)

    NOCT 44.9. +- 2 C
    Pmpp -0.459 %/K
    Voc -0.343 %/K
    Isc 0.054 %/K

    Can you elaborate on what they are / mean and if these are ok or excellent levels please

    Thank you
    Merv.

  3. Before getting into PV solar I was quite aware of all the different issues that would affect true panel power/daily energy output, such as angle, time of year, dust, age, temperature, cloud etc etc.

    But as soon as I had my system running, one popped up that I had never known of: ‘STATE CODE 567’. I see this almost daily, with a message to the effect that my inverter has to derate itself when this happens.

    Apparently this is due to my electricity provider not properly regulating voltage. Is that a true understanding?
    What can be done about it or do I just have to accept this as another factor affecting true output?

    • Ronald Brakels says

      For Fronius inverters at least, CODE 567 means the grid voltage went too high and so the inverter output was reduced to help keep the grid within safe limits. (This is an example of how solar power assists in maintaining grid stability.) If the derating is happening for excessive periods of time you can complain to your network distributor and they may do something about it.

  4. Hi,
    You have stated above:
    e.g. a 250W solar panel has an “STC maximum power” of 190W.
    Is this correct ?

    • Ronald Brakels says

      Good catch, Chris. That was a mistake and I’ve just corrected it. It should have said a 190W solar panel has an STC maximum power of 190W.

  5. Hector Moran says

    beautiful explanation to understand the datasheet.
    Thank you!

  6. Stephen Hood says

    Hi Finn,

    Nice article, thanks. You mention that PV modules have efficiencies of about 15%. Where does the other 85% of IR energy go? Is it in heating the module which radiates back into the atmosphere? Would that contribute to global warming? If the PV module was not there the sunlight would hit the grass, which doesn’t get as hot as the cell so presumably it reflects more and some of the energy would be used in photo-synthesis and absorb CO2. Has anyone calculated the effect of this 85%?

    Thanks

    Steve

    • Geoff Miell says

      Stephen Hood,
      You mention that PV modules have efficiencies of about 15%.

      Finn’s post above was published more than a decade ago. Panel efficiencies have improved significantly since then. In a more recent post on solar panels:

      When I talk about efficiency, I am referring to the ratio (as a percentage) of the solar energy that hits the panel surface to the electrical energy generated by the module.

      For example, if a solar panel captured half the energy in the sunlight, then the module’s conversion efficiency would be 50%. In real-world conditions, conventional solar panel efficiencies range from about 15% up to just over 21%.

      https://www.solarquotes.com.au/panels/

      Where does the other 85% of IR energy go?

      The remaining solar energy not converted by the PV panel into electrical energy is either absorbed by the panel as heat or reflected/reradiated back into the environment.

      Would that contribute to global warming?

      Solar panels fight global warming by producing electricity that keeps us from burning greenhouse gas-producing fossil fuels. It also shades the area below it.

      If the PV module was not there the sunlight would hit the grass, which doesn’t get as hot…

      Solar farms have significant gaps between rows of panels, allowing sunlight through to the ground beneath. A multitude of different crops and grasslands can be grown underneath.

      Yes, plants need sunlight, but some need less than others, and indeed get stressed by too many photons. Shading those crops means they will require less water, which rapidly evaporates in an open field. Plus, plants “sweat,” which cools the panels overhead and boosts their efficiency.

      https://www.wired.com/story/growing-crops-under-solar-panels-now-theres-a-bright-idea/

    • Ronald Brakels says

      Hi Stephen, Ronald here.

      That’s a good question. The short answer to whether or not solar panels warm the earth by being darker than normal ground and absorbing more heat is…

      No, not really.

      The long answer is kind of long, so I think I’ll write an article about it and answer it in depth.

  7. Technology has moved on. A lot of the figures are out of date.

    Regardless I’ve got panels from 2011 rated at 3040W producing up to 2950 instant and up to 18-20KW a day!

    Know somebody who bought cheap and there system is down to about 2/3rds of original. So the above came true for them but not me.
